QT12-15 automatic concrete block making machines
Price: |
82000.0~88100.0 USD |
Payment Terms: |
T/T,L/C,WU |
Place of Origin: |
Shandong, China (Mainland) |
Product Detail
Model No.:
QT12-15
Production Capacity:
300 Set/Sets / Month
Delivery Date:
within 30 working days
Type:
Hollow Block Making Machine
Brick Raw Material:
Cement
Automatic:
Yes
Power:
44kw
Weight:
11000kg
Means of Transport:
Ocean
Packing:
standard seaworthy packing ...
Brand Name:
LONGNUO
Processing:
Brick Production Line
Method:
Hydraulic Pressure
Capacity:
2000pcs/h
Color:
Blue&White
Certificate:
ISO9001-2000
1.Reliable quality
2.Full-automatic control
3.Patent product
4.Environmental-protect

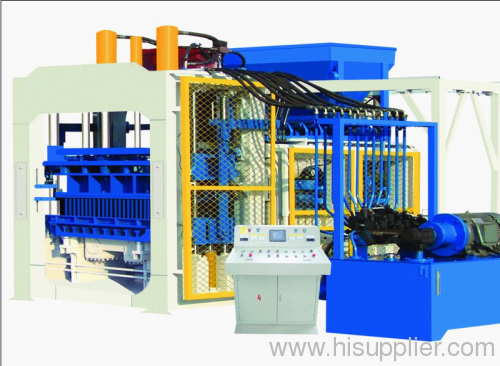

QT12-15 Fully-automatic Concrete Block Making Machine
Feature:
- Paticular storage and segregation material systerm insure the feeding accuracy and avoiding the effect of exterior material. So the products have high desity.
- Adopting synchronization vibration insures the products making average. the frequency can change according to different technics .low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
- The computer is of fault diagnosis system. Warning signal is propitous to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny,controlling, diagnosis
Productivity :
| Sample | Quantity | Cycle moulding | Per hour | Per day |
Hollow brick | | 400*200*200 | 12 | 2160pcs | 21600pcs |
| 400*150*200 | 16 | 7200pcs | 28800pcs |
colorbrick | | 225*112.5*60 | 30 | 7200pcs | 54000pc |
Main Technical Parameter
Main Technical Specifications |
Dimension | 9350*2520*2950mm |
Rated pressure | 21MPa |
Main vibration | platform |
Vibration frequency | 2800-4500r /min |
Pallet Size | 1300*900mm |
Molding Cycle | 15-25(s) |
Overall Power | 46kw |
Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields | widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
Equipments:
stocking raw materials, mixing, molding, forming, cutting, evaporating and curing, crane cramp, transporting etc.
We can supply our customer for designning, production, installation, commissioning, training and good after-sale service.

Contact person:Carol
